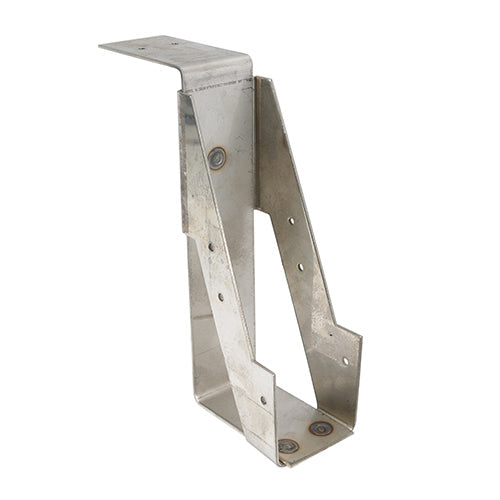

Welded Masonry Joist Hangers – A2 Stainless Steel – 47 x 200mm (6 Pack)
Welded Masonry Joist Hangers – A2 Stainless Steel – 47 x 200mm (6 Pack)
Couldn't load pickup availability
Designed to support 47 x 200mm timber joists from a brick or block wall. This welded masonry joist hanger can be installed by building into the wall or, for renovation work, by raking out existing brickwork. Manufactured from A2 (304) stainless steel for excellent corrosion resistance, making it suitable for corrosive environments and base materials with inherent corrosive characteristics (e.g. green oak).
Key Features
- Designed to support timber joists from brick or block walls.
- Install by building into masonry or retrofit by raking out brickwork.
- Welded construction for a strong, rigid hanger.
- Manufactured from A2 (304) stainless steel for high corrosion resistance.
- Conforms to Eurocode 6 and service class 3.
- Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber.
- 80mm bearing for consistent joist support.
- 6 nail holes (3.75mm) for secure fixing.
- Safe working load: 3.5kN.
- Supplied as a single unit (Unit pack).
Typical Applications
- Supporting floor or roof joists built into brickwork and blockwork.
- New-build masonry where hangers are built-in during construction.
- Refurb and repair work where masonry is raked out to install the hanger.
- Projects in urban/industrial or other higher-corrosion locations where stainless steel is preferred.
- Timber structures using green oak or other potentially corrosive base materials.
Specifications
| Product code | 47200WMHS |
|---|---|
| Material | Austenitic Stainless Steel (A2-304) |
| Type | Welded |
| Joist size (W x H) | 47 x 200mm |
| W (mm) | 47 |
| H (mm) | 190 |
| B (mm) | 80 |
| Thickness (mm) | 2.4 |
| Nail holes (3.75mm) | 6 |
| Safe working load (kN) | 3.5 |
| Approval | BS 5628 |
| CE standard | BS EN 845-1:2013+A1:2016 |
| Eurocode | 6 |
| Service class | 3 |
| Corrosion rating (1–5) | 4 – Urban & industrial areas with a moderate salt atmosphere |
| Pack type | Unit |
| Pack quantity | 1 Each |
| Pack dimensions (L x W x H) | 80 x 47 x 190mm |
| Pack weight | 0.53kg |
| Packs Received | 6 |
