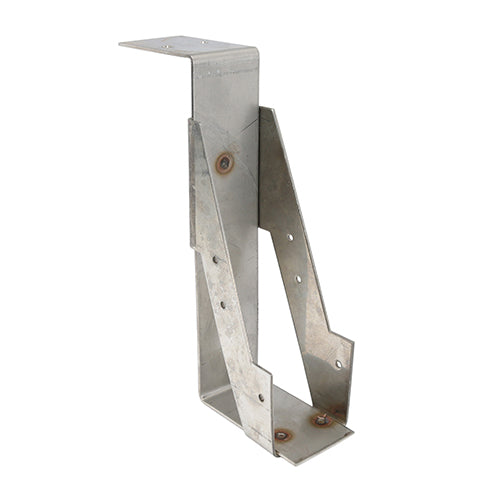

Welded Masonry Joist Hanger – A2 Stainless Steel – 47 x 225mm (6 Pack)Welded Masonry Joist Hanger

Designed to support 47 x 225mm timber joists from a brick or block wall. This welded masonry joist hanger can be installed by building into the wall or, for renovation work, by raking out existing brickwork. Manufactured from A2 (304) stainless steel for ultimate corrosion resistance, making it suitable where there is a corrosive environment and/or the base material has inherent corrosive characteristics (e.g. green oak).

Key Features

• Designed to support timber joists from brick or block walls.
• Install by building into masonry or retrofit by raking out brickwork.
• Welded construction for a strong, rigid hanger.
• Manufactured from Austenitic Stainless Steel (A2-304) for excellent corrosion resistance.
• Conforms to Eurocode 6 and service class 3.
• Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber.
• 80mm bearing for consistent joist support.
• 2.4mm thickness with 6 nail holes (3.75mm).
• Safe working load: 3.5kN.
• Supplied as a single unit (Unit pack).

Typical Applications

• Supporting floor or roof joists built into brickwork and blockwork.
• New-build masonry where hangers are built-in during construction.
• Refurb and repair work where masonry is raked out to install the hanger.
• Projects in urban/industrial locations where improved corrosion resistance is required.
• Timber structures using green oak or other potentially corrosive base materials.
