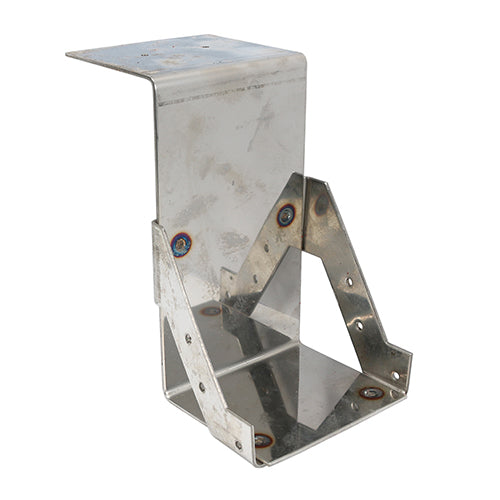

Welded Masonry Joist Hanger – A2 Stainless Steel – 100 x 175mm (6 Pack)
Welded Masonry Joist Hanger – A2 Stainless Steel – 100 x 175mm (6 Pack)
Couldn't load pickup availability
Designed to support 100 x 175mm timber joists from a brick or block wall. This welded masonry joist hanger can be installed by building into the wall, or for renovation work by raking out existing brickwork. Manufactured from A2 stainless steel for excellent corrosion resistance, making it ideal for corrosive environments and timber with inherent corrosive characteristics such as green oak.
Key Features
- Designed to support timber joists from brick or block walls.
- Install by building into masonry or retrofit by raking out brickwork.
- Manufactured from A2 (304) stainless steel for high corrosion resistance.
- Conforms to Eurocode 6 and service class 3.
- Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber.
- Safe working load: 3.5kN.
- 80mm bearing and 6 nail holes (3.75mm) for secure fixing.
- 2.4mm thick welded construction.
Typical Applications
- Supporting floor and roof joists built into brickwork and blockwork.
- Renovation work where masonry is raked out to install the hanger.
- Projects in urban/industrial locations where improved corrosion resistance is required.
- Timber structures using green oak or other potentially corrosive base materials.
Specifications
| Material | Austenitic Stainless Steel (A2-304) |
|---|---|
| Type | Welded |
| Joist size (W x H) | 100 x 175mm |
| Width (W) | 100mm |
| Height (H) | 165mm |
| Bearing (B) | 80mm |
| Thickness | 2.4mm |
| Nail holes (3.75mm) | 6 |
| Safe working load | 3.5kN |
| Approval | BS 5628 |
| CE standard | BS EN 845-1:2013+A1:2016 |
| Eurocode | 6 |
| Service class | 3 |
| Corrosion rating (1–5) | 4 – Urban & industrial areas with a moderate salt atmosphere |
| Pack type | Unit |
| Pack quantity | 1 Each |
| Packs Received | 6 |
| Pack dimensions (L x W x H) | 80 x 100 x 165mm |
| Pack weight | 0.65kg |
