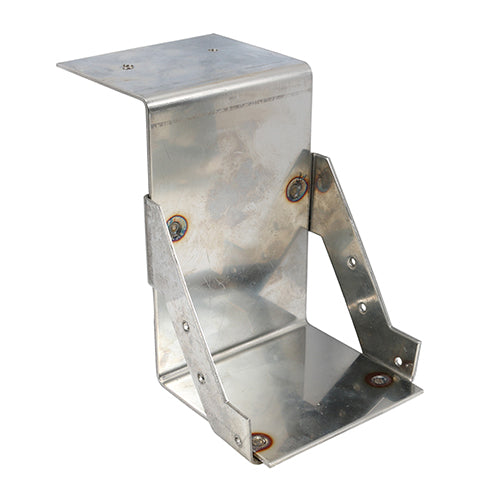

Welded Masonry Joist Hanger – A2 Stainless Steel – 100 x 150mm (6 Pack)
Welded Masonry Joist Hanger – A2 Stainless Steel – 100 x 150mm (6 Pack)
Couldn't load pickup availability
Designed to support 100 x 150mm timber joists from a brick or block wall. This welded masonry joist hanger can be installed by building into the wall, or for renovation work by raking out existing brickwork. Manufactured from A2 stainless steel for excellent corrosion resistance, making it a strong choice for corrosive environments and applications such as green oak.
Key Features
- Designed to support timber joists from brick or block walls.
- Install by building into masonry or retrofit by raking out brickwork for renovation work.
- Manufactured from A2 (304) stainless steel for strong corrosion resistance.
- Suitable where stainless is required for corrosive environments and green oak applications.
- Conforms to Eurocode 6 and service class 3.
- Safe working load: 3.5kN.
- 80mm bearing for consistent joist support.
- 2.4mm thickness with 6 nail holes (3.75mm).
- Supplied as a single unit (MOQ 6) for trade orders and site stock.
Typical Applications
- Supporting floor or roof joists built into brickwork and blockwork.
- Renovation work where masonry is raked out to install the hanger.
- Projects in urban/industrial areas or locations with increased corrosion risk.
- Timber structures using green oak or other potentially corrosive base materials.
Specifications
| Material | Austenitic Stainless Steel (A2-304) |
|---|---|
| Type | Welded |
| Joist size (W x H) | 100 x 150mm |
| Width (W) | 100mm |
| Height (H) | 140mm |
| Bearing (B) | 80mm |
| Thickness | 2.4mm |
| Nail holes | 6 (3.75mm) |
| Safe working load | 3.5kN |
| Approval | BS 5628 |
| CE standard | BS EN 845-1:2013+A1:2016 |
| Eurocode | 6 |
| Service class | 3 |
| Corrosion rating (1–5) | 4 – Urban & industrial areas with a moderate salt atmosphere |
| Pack type | Unit |
| Pack quantity | 1 Each |
| Packs Received | 6 |
| Pack dimensions (L x W x H) | 80 x 100 x 140mm |
| Pack weight | 0.62kg |
