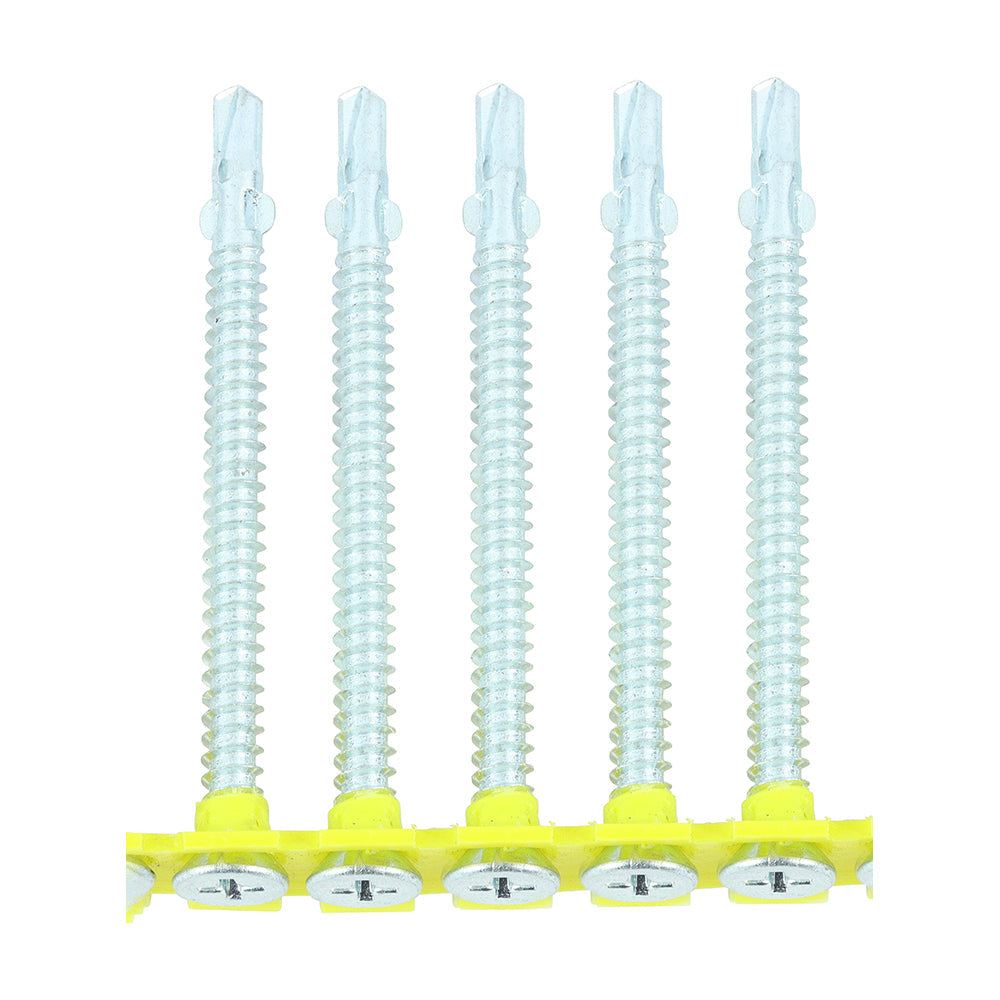

TIMCO Collated Timber to Light Section Screws – Countersunk – Wing-Tip – Self-Drilling – ZincTIMCO Collated Timber to Light Section Screws

Fast, Clean Fixing from Timber to Steel Studs – No Pre-Drilling Required

TIMCO Collated Timber to Light Section Screws are designed for efficient fixing of timber components to light gauge steel sections up to 2.5mm thick. Featuring a precision-engineered wing-tip to clear timber fibres and a self-drilling point for steel penetration, these screws eliminate the need for pre-drilling. Collated onto plastic strips for compatibility with autofeed screwdrivers, they enable fast, continuous fixing in partitioning, wall framing, and ceiling systems.

Key Features & Benefits

• Wing-Tip Design: Wings bore through timber and snap off as the screw hits steel, preventing wood splitting or separation.
• Self-Drilling Point: Drills directly into steel sections up to 2.5mm thick without the need for pilot holes.
• Collated for Speed: Supplied on plastic strips for use with most autofeed screwdrivers—ideal for repetitive fixings.
• Countersunk Head: Ensures a flush finish in timber. Ribs under the head help with clamping and reduce surface bulge.
• Zinc Plated: For corrosion protection in dry, internal environments.
• Precision Fit: PH2 drive for consistent engagement and reduced cam-out.

Application Areas

• Fixing timber battens to light steel sections
• Internal walls, partitions, and ceiling systems
• Drywall framing in steel stud construction
• Offsite timber frame and modular builds

Technical Specifications

• Head Type: Countersunk with ribs
• Drive Type: PH2 (Phillips No.2)
• Thread Type: Single thread
• Point: Self-drilling with wing-tip
• Material: Carbon steel
• Finish: Zinc plated
• Max Steel Thickness: 2.5mm
• Collation: Plastic strip for autofeed drivers
• Available Lengths: 42mm, 45mm, 48mm
