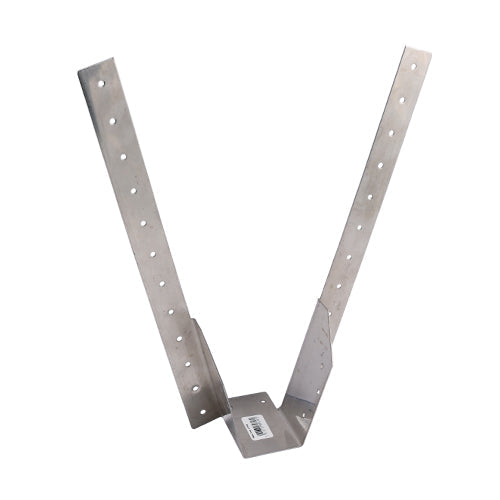

Timber Hangers – Standard – A2 Stainless Steel - 47 x 100 to 225mm (20 Pack)Timber Hangers

Designed as a simple solution for timber-to-timber connections such as joists and stairwell trimming. This standard timber hanger features increased leg length so 47mm widths can take up to a 225mm deep joist. Manufactured from A2 (304) stainless steel for excellent corrosion resistance, it’s the right choice where there is a corrosive environment and/or the timber has inherent corrosive characteristics (e.g. green oak).

Key Features

• Standard timber hanger for timber-to-timber connections (joists and stairwell trimming).
• A2 (304) stainless steel for high corrosion resistance.
• Conforms to Eurocode 5 and service class 3.
• To suit joists: 47 x 100 to 225mm.
• Increased leg length helps accommodate deeper joists up to 225mm.
• 50mm bearing (B) for consistent support.
• 32 nail holes (to suit 3.75mm nails) for a secure fixing pattern.
• Safe working loads (BS 5268): 7.72kN (short) / 7.35kN (medium) / 6.43kN (long).

Typical Applications

• Supporting floor joists and other timber members in timber frameworks.
• Stairwell trimming and timber trimming work.
• Outdoor, damp or exposed builds where stainless steel is preferred for corrosion resistance.
• Timber structures using green oak or similar potentially corrosive timbers.

Specifications
