Timber Hangers – Mini Plus – Galvanised - 47 x 100 to 150mm (20 Pack)Timber Hangers

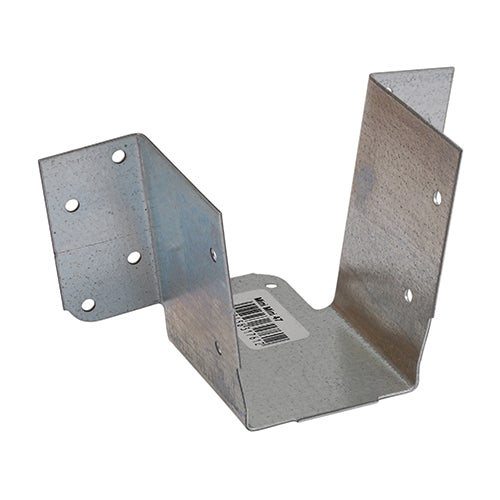

Timco Mini Plus Timber Hangers are designed to give a small, economic and lightweight timber-to-timber connection for light duty applications such as loft hatches, decking, ceiling joists and trimmers. Manufactured from pre-galvanised carbon steel for improved corrosion resistance, each hanger features a stabilising tag on the base to help avoid rotation during installation.

Key Features & Benefits

• Light-Duty Timber Connector: Ideal for loft hatches, decking, ceiling joists and trimmers.
• Pre-Galvanised Finish: Helps protect against corrosion in occasionally damp or sheltered environments.
• Anti-Rotation Tag: Base tag helps reduce rotation when fixing in place.
• Standards & Compliance: Conforms to Eurocode 5 and Service Class 2.
• Multiple Joist Depths: Suitable for 47mm joists from 100mm to 150mm deep.

Product Details

• Brand: TIMCO
• Type: Mini Plus Timber Hanger
• Finish: Galvanised
• Material: Carbon Steel
• Joist Size: 47mm wide x 100–150mm deep
• Dimensions (L x W x H): 50 x 47 x 96mm
• Thickness: 1mm
• Nail Holes: 20 (3.75mm)
• Approval: BS 5268
• Corrosion Rating (1–5): 2 – Occasionally damp/wet, rural and sheltered areas
• Pack Quantity: 1 Each (Unit)
• Packs Received: 20

Application Guidance

1. Offer up the hanger and mark fixing positions, ensuring correct alignment for the joist width.
2. Fix through the nail holes using suitable 3.75mm nails/fasteners for the substrate and load requirement.
3. Seat the joist fully into the hanger and complete all specified fixings before loading.

Typical Uses

• Loft hatch framing and light timber trimming
• Light-duty decking and garden timberwork
• Ceiling joists and small timber-to-timber connections
