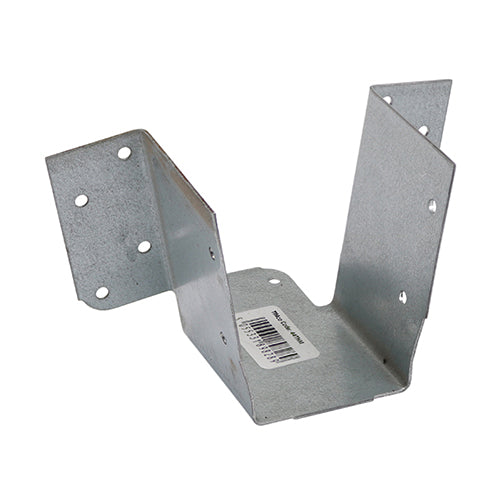

Timber Hangers – Mini – Galvanised - 44 x 75–100mm (20 Pack)Timber Hangers

Designed to give a small and economic lightweight timber-to-timber connection for jobs such as loft hatches and decking. Suitable for light duty applications including ceiling joists and trimmers, these mini hangers are manufactured from pre-galvanised steel to provide corrosion resistance, with a tag on the base to help avoid rotation for a more stable fix.

Key Features

• Mini timber hanger for light duty timber-to-timber connections (e.g. loft hatches and decking).
• Suitable for ceiling joists, decking and trimmers.
• Galvanised finish (pre-galvanised steel) for corrosion resistance.
• Anti-rotation tag on the base helps avoid hanger rotation.
• Conforms to Eurocode 5 and service class 2.
• To suit joists: 44 x 75–100mm.
• Bearing (B): 50mm.
• 14 nail holes (to suit 3.75mm nails).
• 1mm thickness.
• Safe working load (BS 5268): 4.17kN (short) / 3.97kN (medium) / 3.47kN (long).
• Supplied as a single unit (MOQ 20).

Typical Applications

• Light-duty timber framing connections for loft hatches.
• Decking and small timber support work.
• Ceiling joists and trimmers where a compact hanger is needed.

Specifications
