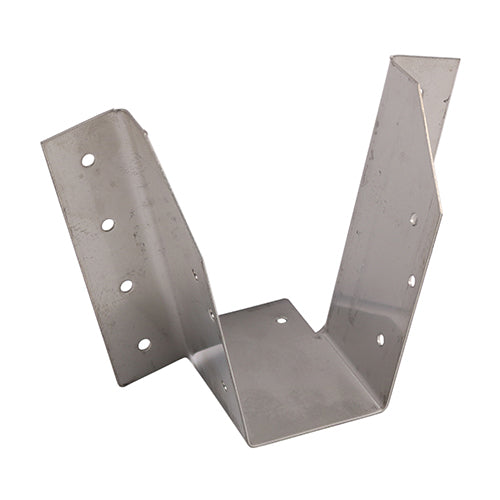

Timber Hangers – Mini – A2 Stainless Steel - 47 x 75–100mm (10 Pack)Timber Hangers

Designed to give a small and economic lightweight timber-to-timber connection for jobs such as loft hatches and decking. These mini timber hangers are suitable for light duty applications including ceiling joists and trimmers. A tag on the base helps avoid rotation, and the A2 (304) stainless steel construction provides excellent corrosion resistance for demanding environments.

Key Features

• Mini timber hanger for light duty timber-to-timber connections (loft hatches, decking, trimmers).
• Manufactured from Austenitic Stainless Steel (A2-304) for corrosion resistance.
• Conforms to Eurocode 5 and service class 3.
• Tag on base helps avoid hanger rotation for a more stable fix.
• To suit joists: 47 x 75 to 100mm.
• 50mm bearing (B) for consistent support.
• 20 nail holes (to suit 3.75mm nails).
• 1mm thickness.
• Safe working loads (BS 5268): 4.75kN (short) / 4.53kN (medium) / 3.96kN (long).

Typical Applications

• Light-duty timber framing connections for loft hatches.
• Decking and small timber support work.
• Ceiling joists and trimmers where a compact hanger is required.
• Installations where improved corrosion resistance is needed (e.g. damp or exposed areas).

Specifications
