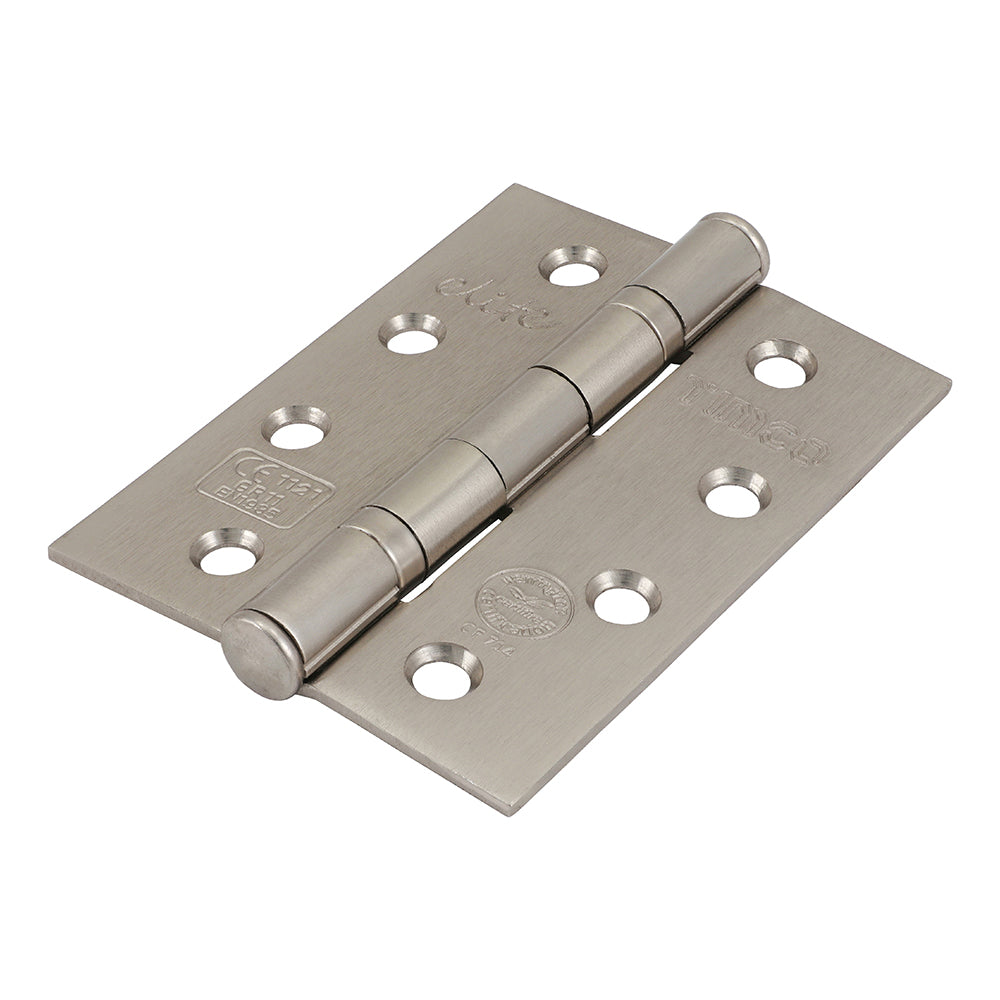

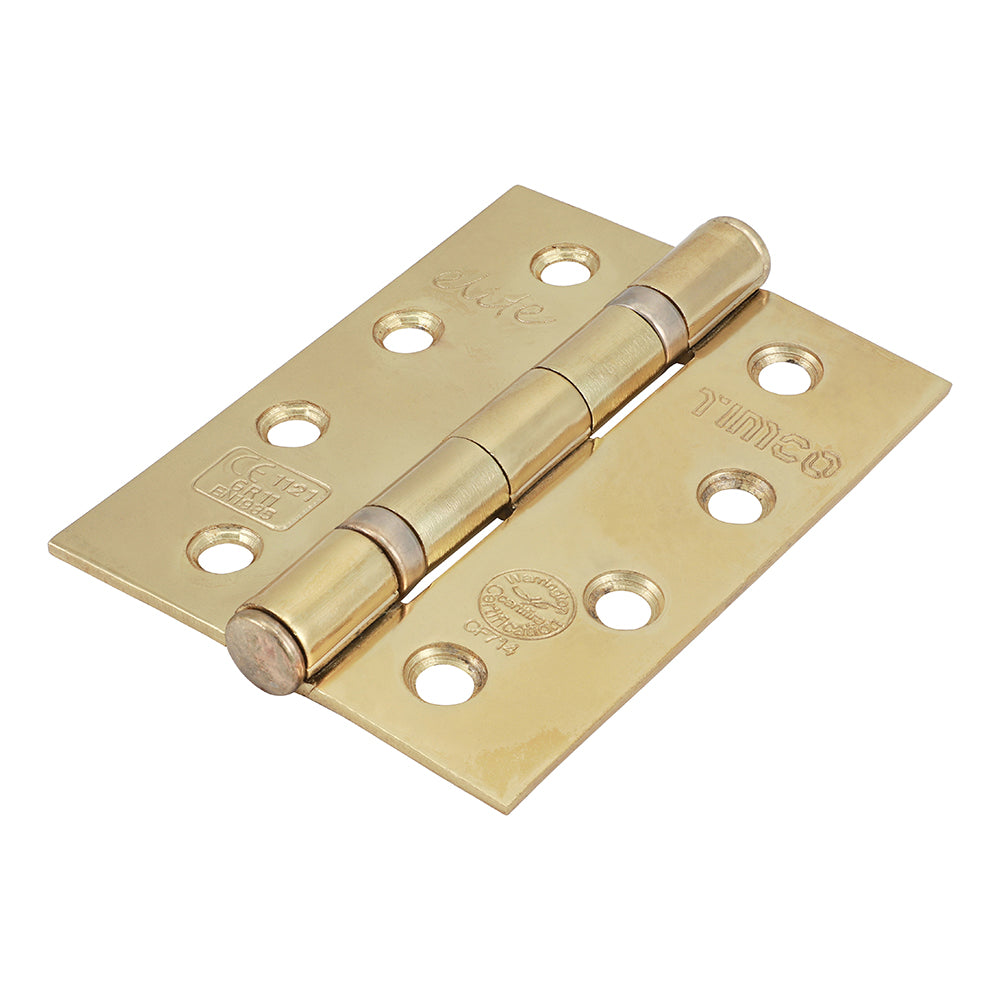

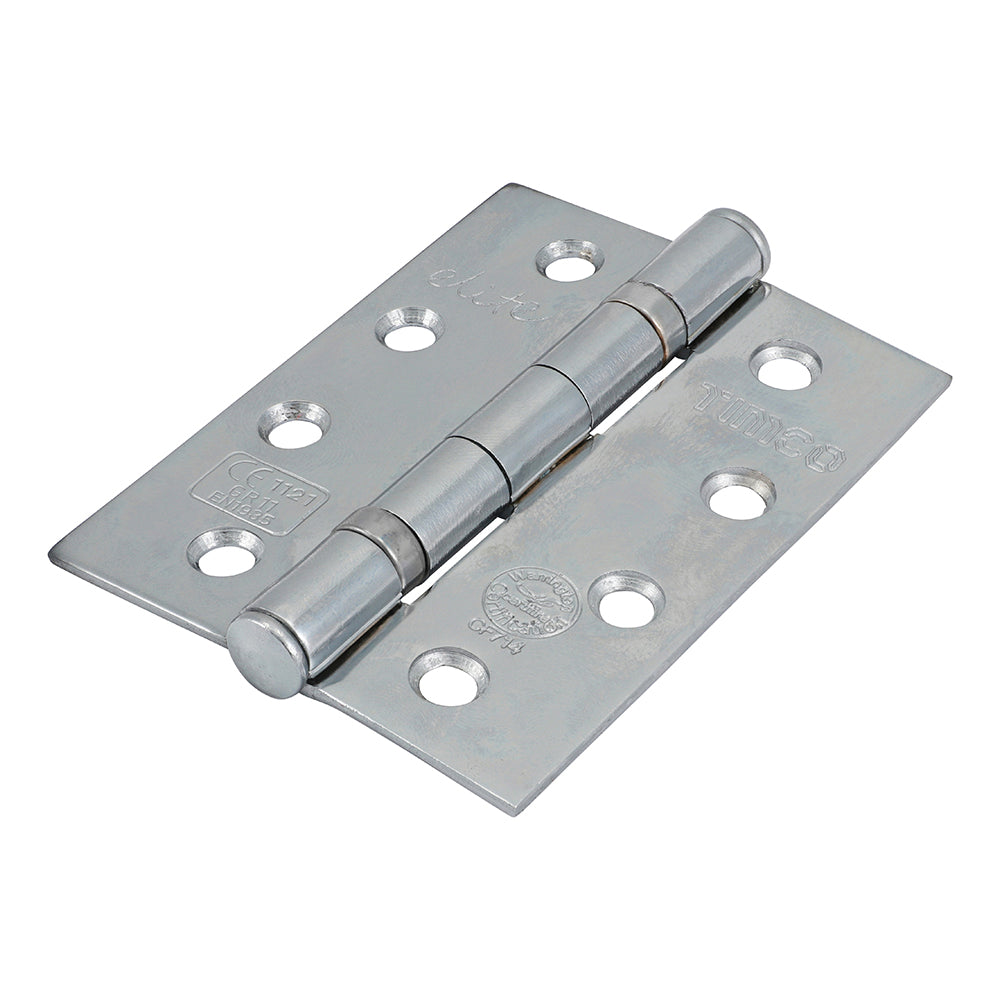

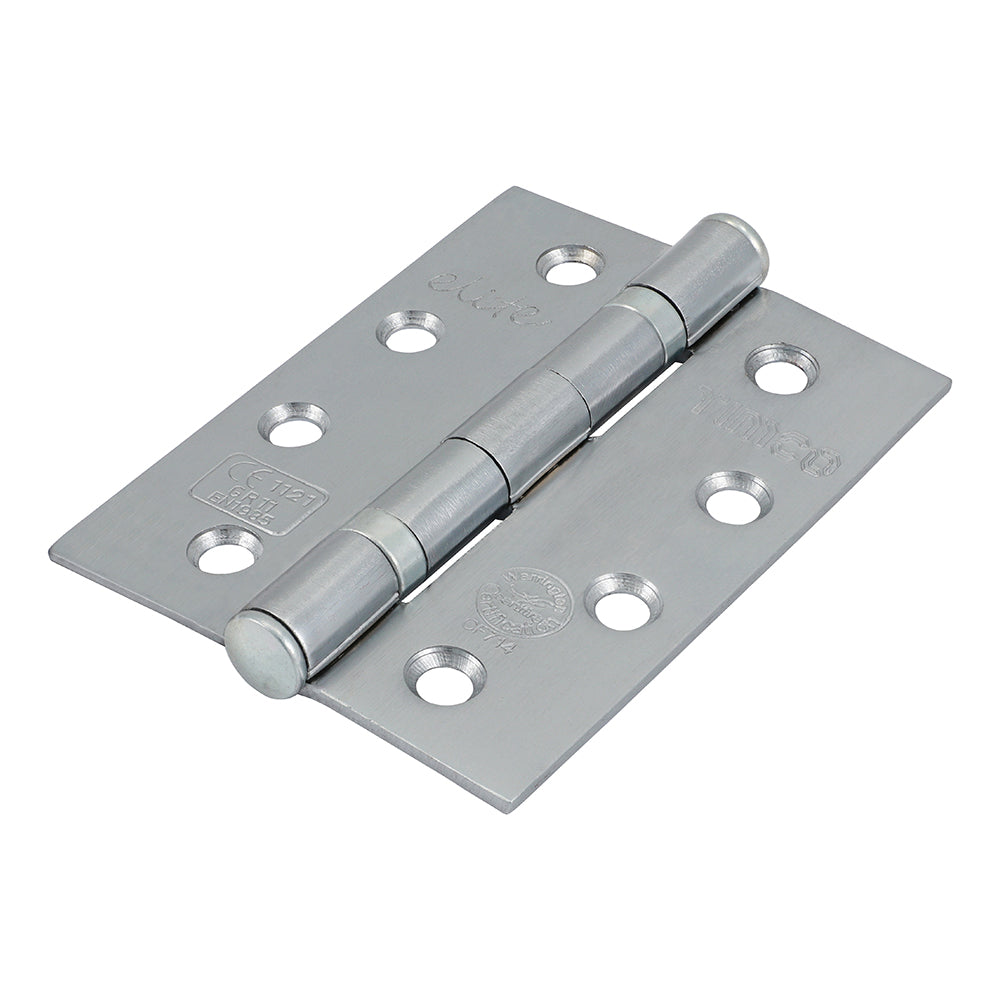

Grade 11 Ball Bearing Fire Door Hinges – 101 x 76mm – 30/60 Minute RatedGrade 11 Ball Bearing Fire Door Hinges

Grade 11 Ball Bearing Fire Door Hinges – 30/60 Minute Rated

The TIMCO Grade 11 Ball Bearing Fire Door Hinges (101 x 76mm) are heavy-duty hinges designed and tested for use on FD30 and FD60 rated fire doors. Certified to BS EN 1935 and CE marked, these hinges are suitable for doors up to 80kg, providing safety, strength, and compliance. The ball bearing design ensures smooth, reliable operation while reducing wear, making them ideal for high-traffic commercial and residential applications. Available in multiple finishes, they offer both performance and style.

Key Features & Benefits

• Fire Rated: Suitable for FD30 and FD60 fire doors (30/60 minutes).
• Grade 11 Certified: BS EN 1935 compliant for doors up to 80kg.
• Ball Bearing Mechanism: Reduces friction, minimises wear, and ensures smooth door action.
• Durable Construction: Built for frequent use in demanding environments.
• Range of Finishes: Satin Nickel, Polished Chrome, Electro Brass, Satin Chrome.

Product & Technical Details

• Size: 101 x 76mm (4” x 3”)
• Fire Rating: 30/60 minutes (FD30/FD60)
• Classification: Grade 11 – BS EN 1935
• CE Marked: Yes
• Maximum Door Weight: 80kg
• Material: Steel
• Hinge Type: Ball Bearing Fire Door Hinge
• Pack Quantity: Supplied in pairs
• Finishes: Satin Nickel, Polished Chrome, Electro Brass, Satin Chrome

Suitable Applications

• FD30 and FD60 rated fire doors
• Commercial and residential high-traffic doors
• Medium to heavy internal timber doors
• Compliance-driven installations requiring certified hardware

Installation Instructions

1. Confirm fire door specification and select Grade 11 hinges.
2. Mark and recess hinge positions on door and frame for a flush fit.
3. Pre-drill pilot holes and secure with fire-rated countersunk screws.
4. Check door alignment and operation, ensuring smooth action.
5. Install with intumescent hinge pads where required by certification.

Limitations & Precautions

• For use only with FD30/FD60 fire doors up to 80kg.
• Must be installed in accordance with fire certification guidelines.
• Always use intumescent hinge pads if specified in test evidence.

The TIMCO Grade 11 Ball Bearing Fire Door Hinges (101 x 76mm) combine certified fire safety with heavy-duty strength and smooth performance, making them the ideal choice for compliant fire door installations in commercial and residential settings.
