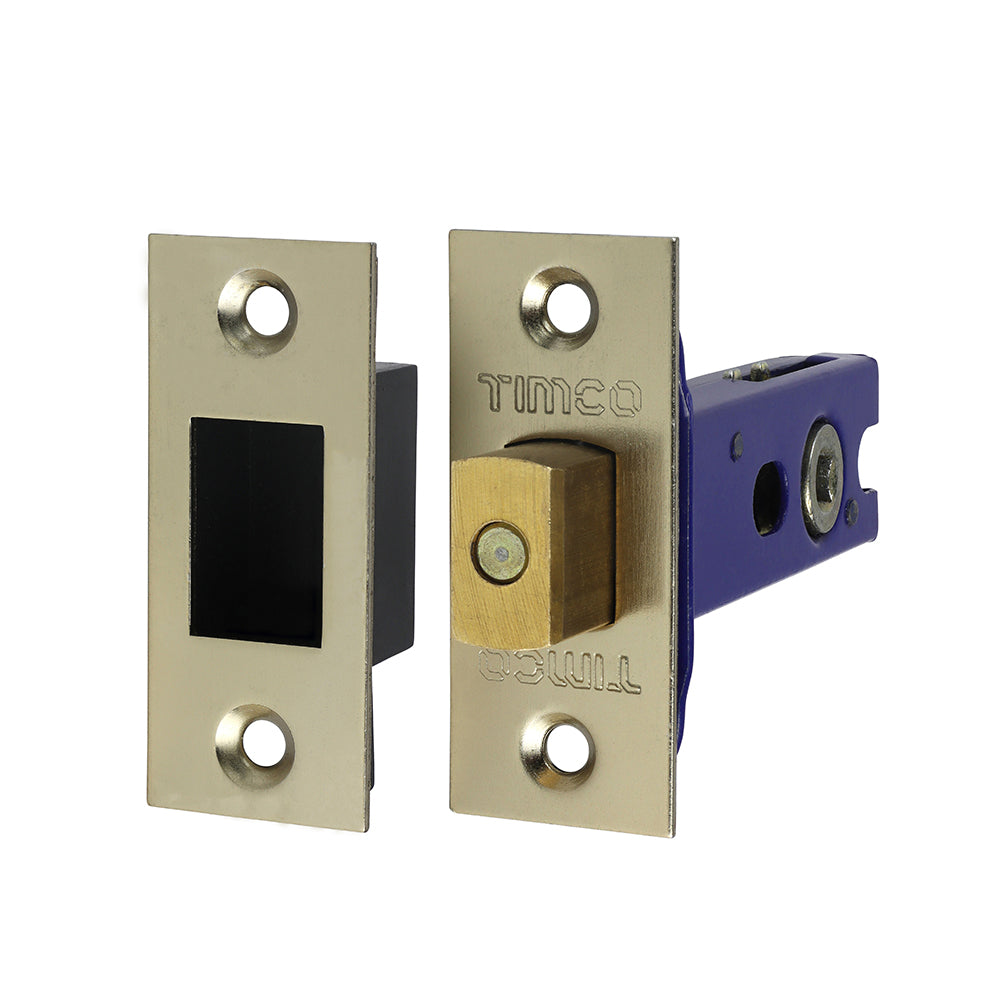

Architectural Tubular Deadbolt – Electro Brass & Satin Nickel (76mm Case / 57mm Backset)Architectural Tubular Deadbolt

A heavy duty architectural pattern tubular deadbolt for high use domestic and commercial applications. Designed to be used with a separate bathroom turn (5mm spindle), it provides a positive, reliable deadbolt action for WC, bathroom and privacy doors. The longer 76mm case with 57mm backset is ideal where a deeper lock position or additional clearance is required, and it is supplied with fixings to suit both electro brass and satin nickel door furniture for a neat, co-ordinated finish.

Key Features

• Robust architectural tubular deadbolt for high traffic internal doors.
• Operated by a separate bathroom turn and release with 5mm spindle (not included).
• Heavy duty mechanism – suitable for frequent use in domestic, commercial and hospitality settings.
• 15mm bolt throw for secure engagement into the frame and a positive “locked” feel.
• 76mm case depth with 57mm backset – ideal where a deeper lock position or wider stile sections are used.
• Square edge faceplate and keep for a clean, professional edge detail on the door and frame.
• Dust box supplied to improve appearance and reduce debris in the strike hole.
• Compatible with most sprung and unsprung bathroom/turn furniture sets.
• Supplied with fixings to coordinate with both electro brass and satin nickel hardware.

Typical Applications

• Bathroom and WC doors using separate turn and release sets.
• En-suite and shower room privacy doors in homes, hotels and student accommodation.
• Internal privacy doors in offices and commercial buildings.
• Refurbishment and new-build projects requiring a neat, tubular deadbolt solution with deeper backset.

Specifications
