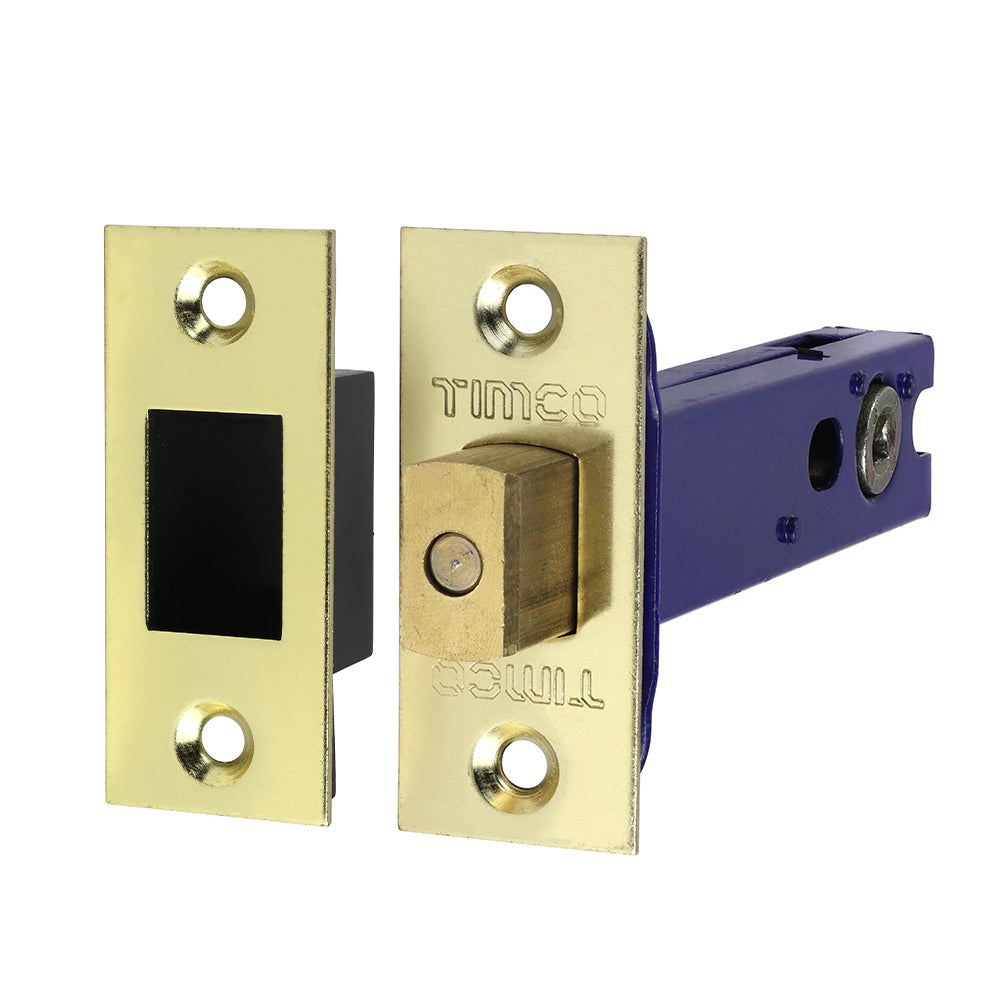

Architectural Tubular Deadbolt – Electro Brass & Satin Nickel (103.5mm Case / 82.5mm Backset)Architectural Tubular Deadbolt

A heavy duty architectural pattern tubular deadbolt for high use domestic and commercial applications. Designed to be used with a separate bathroom turn (5mm spindle), it provides a strong, positive deadbolt action for WC, bathroom and other internal privacy doors. Supplied with fixings to suit both electro brass and satin nickel door furniture for a neat, co-ordinated finish.

Key Features

• Robust architectural tubular deadbolt for high traffic internal doors.
• Operated by a separate bathroom turn and release with 5mm spindle (not included).
• Heavy duty mechanism – suitable for frequent use in domestic, commercial and hospitality settings.
• 15mm bolt throw for secure engagement into the frame and a positive “locked” feel.
• 103.5mm case depth with 82.5mm backset – ideal where a deeper lock position or wider stile section is required.
• Square edge faceplate and keep for a clean, professional edge detail on the door and frame.
• Dust box supplied to improve the appearance of the strike area and reduce debris in the keep.
• Supplied with fixings suitable for both electro brass and satin nickel door furniture.
• Compatible with most sprung and unsprung bathroom/turn furniture sets.

Typical Applications

• Bathroom and WC doors using separate turn and emergency release sets.
• En-suite and shower room privacy doors in homes, hotels and student accommodation.
• Internal privacy doors in offices and commercial buildings.
• Refurbishment and new-build projects requiring a neat tubular deadbolt solution with an extended backset.

Specifications
