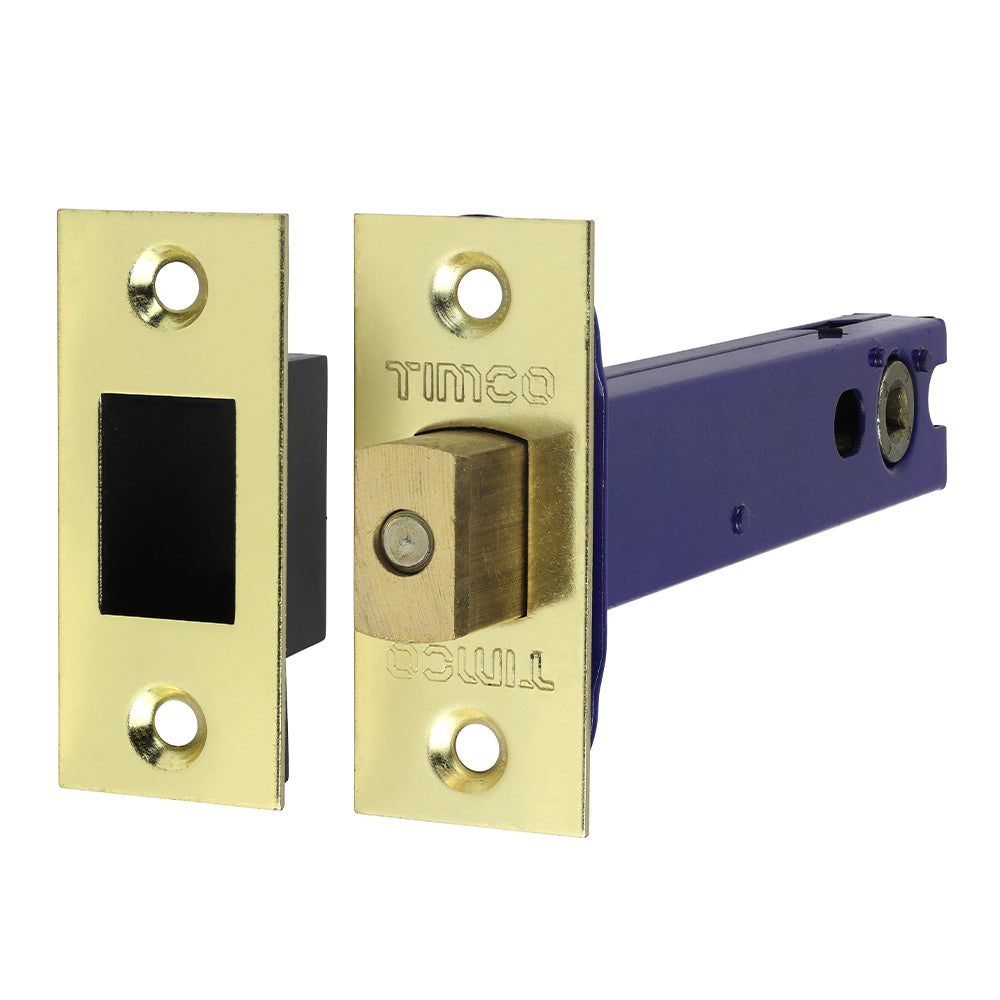

Architectural Tubular Deadbolt – Electro Brass & Satin Nickel (129mm Case / 108mm Backset)Architectural Tubular Deadbolt

A heavy duty architectural pattern tubular deadbolt for high use domestic and commercial applications. Designed to be used with a separate bathroom turn with a 5mm spindle, it delivers a strong, positive locking action for WC, bathroom and other internal privacy doors. Supplied with components to suit both electro brass and satin nickel door furniture, it gives a neat, co-ordinated finish across a wide range of interior styles.

Key Features

• Robust architectural tubular deadbolt for high traffic internal doors.
• Operated by a separate bathroom thumbturn and emergency release with 5mm spindle (not included).
• Heavy duty mechanism – suitable for frequent use in homes, offices, hotels and commercial buildings.
• 15mm bolt throw for secure engagement into the frame and a positive “locked” feel.
• 129mm case depth with 108mm backset – ideal where a deeper lock position or wide stile section is required.
• Includes interchangeable faceplates and keeps to suit both electro brass and satin nickel hardware.
• Square edge faceplate and keep for a clean, professional edge detail on the door and frame.
• Supplied with dust box to tidy the strike area and reduce debris build-up in the keep.
• Suitable for use with both sprung and unsprung bathroom/turn furniture.
• Fire door suitable for 30 and 60 minute timber fire doors when fitted to a compliant door set.

Typical Applications

• Bathroom and WC doors using separate turn and emergency release sets.
• En-suite and shower room privacy doors in domestic and commercial properties.
• Internal privacy doors in hotels, student accommodation and offices.
• Refurbishment and new-build projects needing a deeper backset tubular deadbolt with flexible finish options.

Specifications
