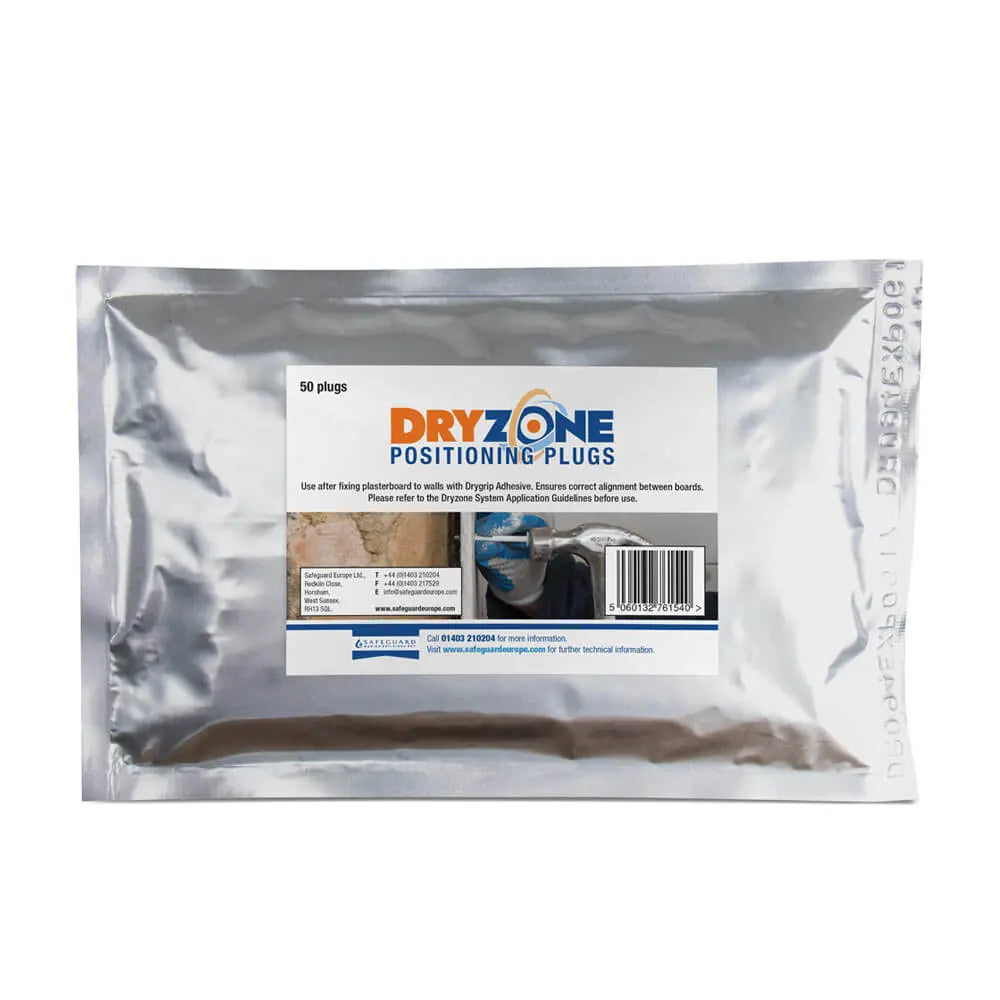

Safeguard Dryzone Positioning PlugsSafeguard Dryzone Positioning Plugs

Secure Fixings for Cavity Drain and Damp-Proofing Membranes

Safeguard Dryzone Fixing Plugs are high-quality, impact-resistant plugs designed for the secure installation of cavity drainage and damp-proofing membranes to walls and other solid substrates. Suitable for use with Dryzone membranes and other mesh or studded membrane systems, these plugs ensure long-term mechanical stability while preventing moisture ingress at the fixing point.

Each plug is supplied with an integrated sealing washer, providing a watertight barrier once the plug is driven into the pre-drilled hole. The plugs can also be used to fix battens or tracking systems in internal waterproofing setups, making them an essential component of any damp-proofing or basement tanking project.

Key Features & Benefits

• Watertight Seal: Integrated rubber washer prevents moisture ingress around the fixing point.
• Compatible with Membranes: Designed for use with Safeguard and other cavity drain or studded membranes.
• Strong Mechanical Fixing: Ribbed shaft design ensures firm hold in brick, concrete, and block substrates.
• Versatile Use: Accepts screws for attaching battens, tracking systems, or insulation boards.
• Quick Installation: Simple hammer-in design for fast and reliable application.

Product Details

• Plug Length: Typically 60mm
• Plug Diameter: 10mm–12mm (varies by model)
• Material: High-grade plastic with sealing washer
• Applications: Internal wall membrane systems, basement waterproofing, batten fixing
• Substrates: Brick, concrete, stone, and block

Application Instructions

1. Drill Holes: Use a masonry drill bit (usually 8–10mm) to create holes at the recommended spacing (typically 250mm centres).
2. Insert Plug: Position the membrane and drive the plug through the membrane into the pre-drilled hole.
3. Seal & Secure: Ensure the integrated washer is compressed against the membrane for a tight seal.
4. Optional Fixings: Insert screws into the central recess to attach battens or other materials if required.

Limitations

• Not suitable for use on loose or soft substrates without additional anchoring methods.
• Ensure proper drilling depth and alignment for secure fixing and sealing.

Health & Safety

Always wear appropriate PPE including eye protection and gloves during installation. Follow membrane system manufacturer’s guidance for spacing and installation technique.
