The Complete Guide to Screws for uPVC Window and Door Installation
Share
Choosing the right screws for a uPVC window or door installation starts with what you are fixing into: masonry, timber or reinforced uPVC. The wrong length, point or head can damage the profile or leave an insecure fixing. This guide explains the main screw types, what to check before ordering and where to find the relevant products.
Why Screw Selection Matters for uPVC
A frame-to-wall fixing does a different job from a screw securing a component to a reinforced profile. Start with the frame, hardware and fixing manufacturers’ instructions, then check:
- Substrate: masonry, timber and steel reinforcement need different fixing designs.
- Length: account for the material being fixed, any installation gap and the required embedment. Overall screw length is not the same as usable fixing thickness.
- Point and thread: select the type specified for the receiving material. A self-drilling screw for steel is not interchangeable with a masonry frame screw or a wood screw.
- Head and drive: confirm both from the product specification. Torx, Phillips, Pozidriv and hex drives require matching bits; there is no single drive for every window screw.
- Corrosion protection: check the coating or stainless-steel grade against the exposure conditions and the system specification.
Frame-to-Wall Fixings
Concrete Frame Screws (Masonry Fixings)

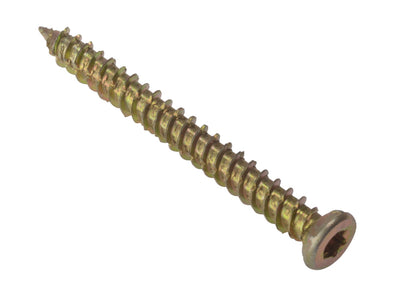

Concrete frame screws are used for suitable fixings into masonry, subject to the screw manufacturer’s approved substrates and installation instructions. The MasonMate 7.5 × 122mm frame screw listed here has a countersunk head and T30 Torx-compatible drive, not a hex head.
Choose length by the required fixing thickness and embedment. Do not select a screw simply because a reveal looks shallow or deep. For example, the 7.5 × 42mm screw listing specifies a maximum fixing thickness of 5mm, so it is not a general recommendation for fixing through a complete uPVC frame.
Use the specified drill diameter, hole depth, edge distances and installation method for the chosen screw and substrate. Check suitability for hollow or aerated masonry separately.
Timber Frame Fixings
For a connection into structural timber, choose a fixing specified for that timber connection and compatible with the frame. The required diameter, head, penetration and spacing depend on the installation; a generic minimum penetration is not a substitute for the system instructions.
Our timber screw range includes different applications. Check each description carefully: a timber-to-steel screw is designed for a different connection from a screw fixing into timber.
Screws for Reinforced uPVC Profiles
Where the system calls for a screw into metal-reinforced PVCu, choose a window screw with the appropriate drill capacity, length and head. The TechFast 3.9 × 13mm window screw is a self-drilling option with a countersunk T15 Torx-compatible head. It is a profile/component fixing, not a replacement for a frame-to-masonry screw.
Check the reinforcement thickness and component requirements before choosing it. Select the pack quantity on the product page.

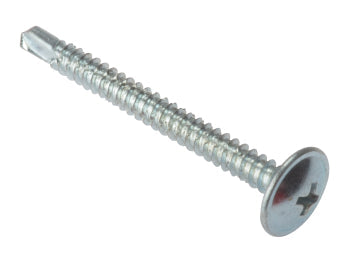

Baypole Screws for Joining uPVC Sections
Baypole screws are designed for joining PVCu sections, including bay-window connections where specified by the system supplier. They are not a general substitute for sash, hinge or wall fixings.
Check the required length, reinforcement and head/drive combination. The linked BZP range offers 4.8mm diameter screws in multiple lengths and pack quantities. Select the combination required for your connection rather than assuming every baypole screw has a hex head or is 19mm long.
Glazing Bead Fixings
Many uPVC glazing beads clip into their matching profiles. Do not add screws to a bead unless the glazing system specifically requires them. For a system that uses a mechanical fixing, follow its exact screw specification and clearance requirements; an unrelated pan-head screw is not an equivalent.
Ironmongery and Hardware Fixings
Hinges, handles and locks can use different fixing methods. Match the hardware manufacturer’s required screw type, diameter, length and receiving material. Do not assume all hardware uses machine screws or threaded inserts, and do not substitute a longer screw without checking clearance.
Cover Caps and Packers
Finish suitable exposed fixings with screw cover caps matched to the screw head, cap design and colour. A decorative cap should not be treated as a waterproof seal unless its specification says so.
Check that you also have the glazing packers or U-frame packers specified for the job. Choose their dimensions and placement to suit the system; they perform a different function from the fixing itself.
Quick Reference: Choosing uPVC Fixing Screws
| Connection | Check before buying | View products |
|---|---|---|
| Frame to masonry | Approved substrate, fixing thickness, embedment and drilling instructions | 7.5 × 122mm MasonMate — T30 |
| Frame to timber | Timber connection specification, diameter, penetration and head | Compare timber screws |
| Component to reinforced uPVC | Component requirement, reinforcement thickness and drill capacity | 3.9 × 13mm TechFast — T15 |
| Bay-window section joint | System requirement, screw length, head and drive | Compare 4.8mm baypole options |
Ready to Order?
Check the screw dimensions, pack quantity and matching driver bit before adding to your basket. Product pages show the current prices and available options. Free UK delivery applies to qualifying orders over £50; check our delivery policy and the charges shown at checkout.
Unsure Which Fixing to Choose?
Send us the frame or hardware details, the material you are fixing into and the size required by your installation specification. Email martin@glazingsuppliesdirect.com or contact us before ordering.
