Glazing Shovels 101: Why You’re Making Your Life Harder Without One
If you’ve ever struggled to get a heavy double-glazed unit to sit perfectly square in a frame, you’ve likely felt the frustration of a "dropping" sash. You might have tried prying it up with a screwdriver or a metal scraper, only to hear that heart-stopping crack of the glass or see a fresh gouge in the uPVC.
That’s where the glazing shovel, also known as a glazing paddle, comes in. It’s a simple, inexpensive tool that separates the pros from the amateurs. If you’re installing windows or doors without one, you’re essentially working with one hand tied behind your back.
What is a Glazing Shovel?

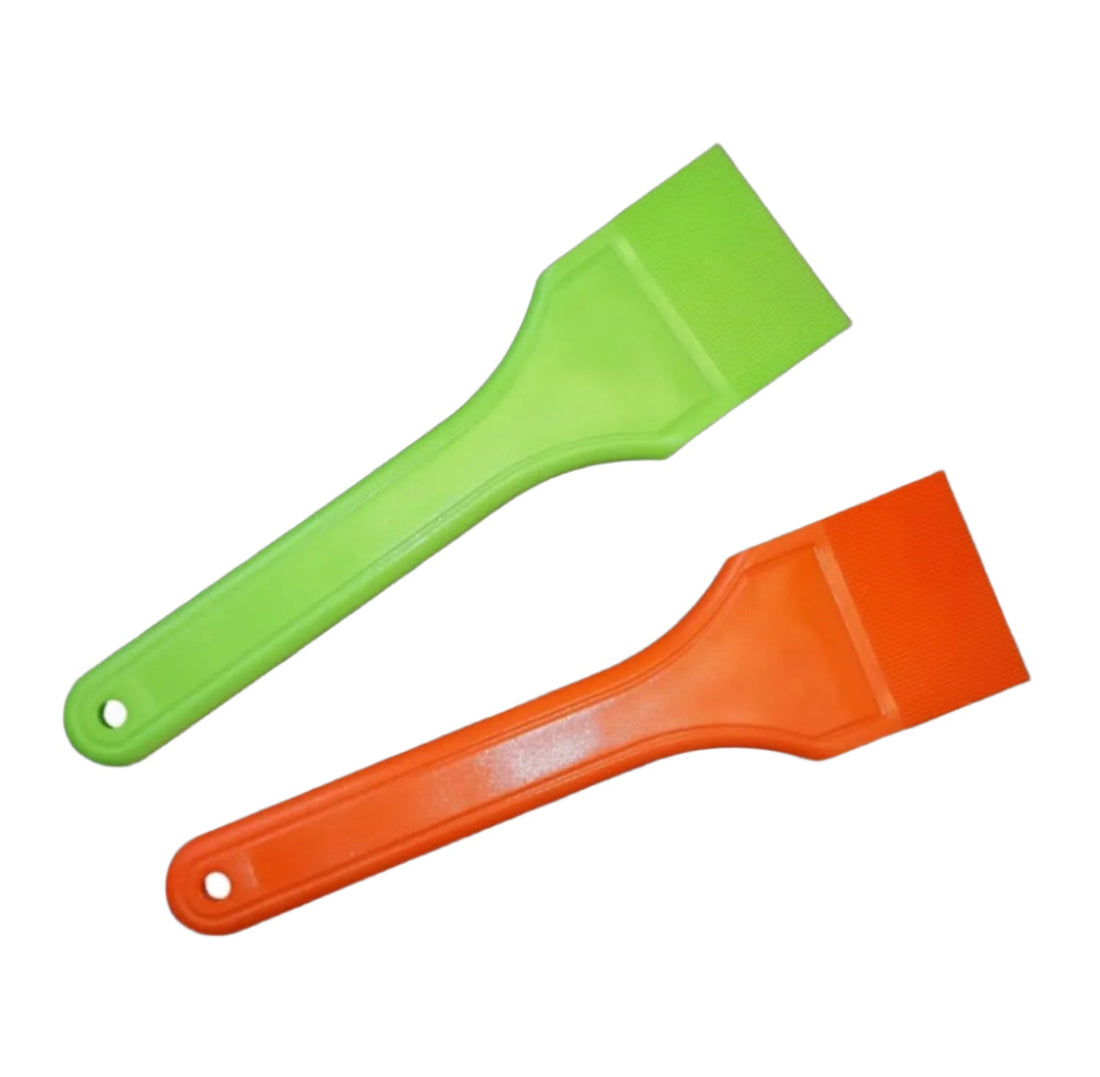

A glazing shovel is a flat, rigid tool designed specifically to lift and maneuver glass units within their frames. Made from high-impact, heavy-duty plastic, it provides the leverage needed to position heavy IGUs (Insulated Glass Units) safely. Unlike metal tools, the plastic construction ensures you don't scratch the glass or damage the window profile.
Why Do You Need a Glazing Shovel?
Using the right tool for the job isn't just about looking professional; it's about efficiency and safety. Here is why the glazing shovel is a non-negotiable part of any installer's kit:
- Prevents Glass Damage: Metal tools can cause "edge damage" to the glass, which leads to spontaneous breakage later. The wide, flat blade of a glazing shovel distributes pressure evenly.
- Speeds Up "Toe and Heeling": This is the process of bracing the glass to keep the frame square. A shovel makes this repetitive task significantly faster.
- Protects the Frame: It slides easily between the glass and the frame without leaving marks or dents on uPVC, timber, or aluminium.
- Versatility: Beyond lifting glass, it’s great for scraping off excess silicone or checking for obstructions in the frame.
The Essential Process: How to Toe and Heel Like a Pro
"Toe and heeling" is the most common use for a glazing shovel. It involves placing glazing packers diagonally to brace the glass, ensuring the weight is transferred back to the hinge side so the door or window doesn't sag.
1. Set the "Toe"
Start at the bottom corner on the hinge side. Place your first set of packers here. This acts as the pivot point for the entire unit.
2. Set the "Heel"
Move to the opposite top corner (the lock side). This is where the glass wants to drop.
3. Use the Shovel for Leverage
Insert the blade of your glazing shovel at the top corner of the lock side. Apply gentle upward pressure to lift the glass unit. This creates the gap needed to slide in your packers.
4. Pack to Square
While holding the glass up with the shovel, insert enough bridge packers to hold the unit in its square position.
5. Test the Operation
Remove the shovel and test the door or window. If it catches at the bottom, you need more packers at the "heel" (top lock side). If it’s too high, take one out.
Pro Tip: Always use 28mm or 24mm packers depending on your unit thickness. Never "force" the shovel; if the glass isn't moving, check if it's snagged on a screw head or a stray bit of weld.
Factors to Consider When Buying a Shovel
Not all shovels are created equal. When you're choosing a tool for your bag, look for these features:
- Material: It must be high-impact plastic (like ABS). If it’s too soft, it will bend under the weight of a triple-glazed unit. If it’s too hard, it might snap.
- Blade Width: A 70mm wide blade is the industry standard. It’s wide enough to support the glass without focusing too much pressure on one spot.
- Handle Grip: You’ll often be using this tool with nitrile-coated gloves, so a textured or ergonomic handle is vital to prevent slipping.
- Price vs. Quality: You don't need to spend a fortune. A trade-quality shovel like the ones we stock at Glazing Supplies Direct is under £10 but built to last for hundreds of installs.
Frequently Asked Questions (FAQ)
Can I just use a stiff putty knife instead?
Technically, you can, but it’s risky. Metal knives are thin and can easily chip the edge of the glass. Once the edge of a toughened unit is nicked, it’s a ticking time bomb.
Does it work on timber windows?
Yes. In fact, it’s often easier on timber because the shovel helps you clear the internal rebate without marring the wood grain.
How long do they last?
A good plastic shovel should last for years. However, if the edges become jagged or chipped from hitting screws, it’s time to replace it so you don't scratch any frames.
Is it suitable for DIYers?
Absolutely. If you are replacing a single misted unit or adjusting a dropped front door, a glazing shovel is the best £10 you’ll spend. It makes the job ten times easier and much safer.
Get the Right Gear for the Job
Stop struggling with makeshift tools and risking expensive glass breakages. At Glazing Supplies Direct, we stock the Standard Glazing Shovel: a trade-tested, UK-made tool designed for precision and durability.
Whether you're a seasoned glazier or a homeowner tackling a repair, we provide next-day delivery on in-stock items and free UK delivery on orders over £50. Grab your shovel, some packers, and a fresh tube of sealant, and get the job done right the first time.
