Rico Bathroom Fan 100mm Model Timer Switch and a Humidistat

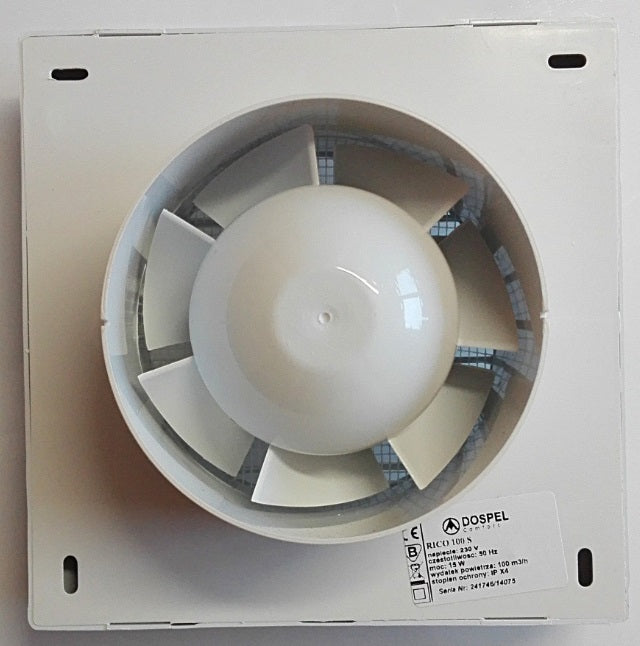

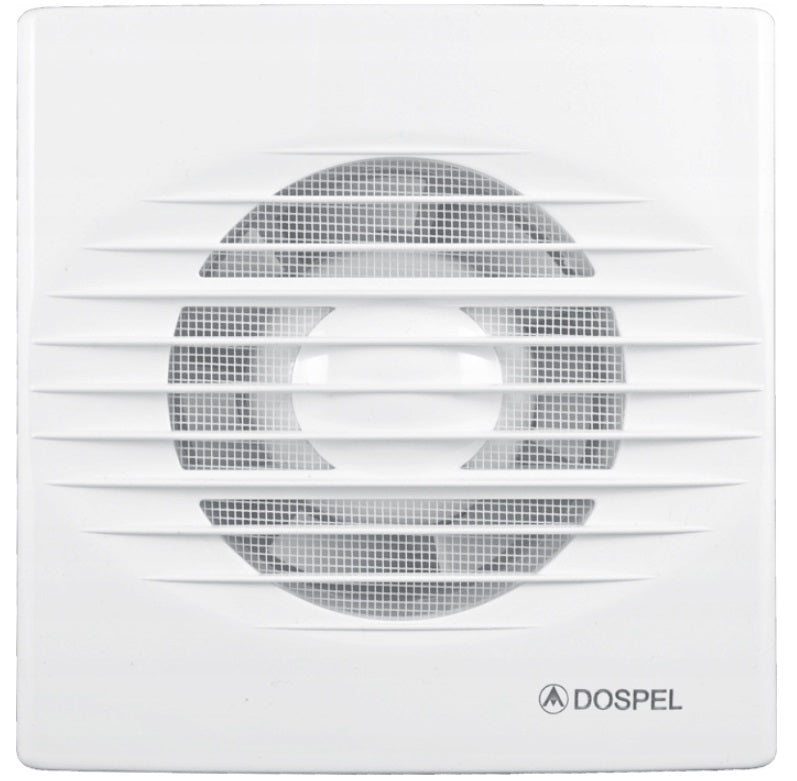

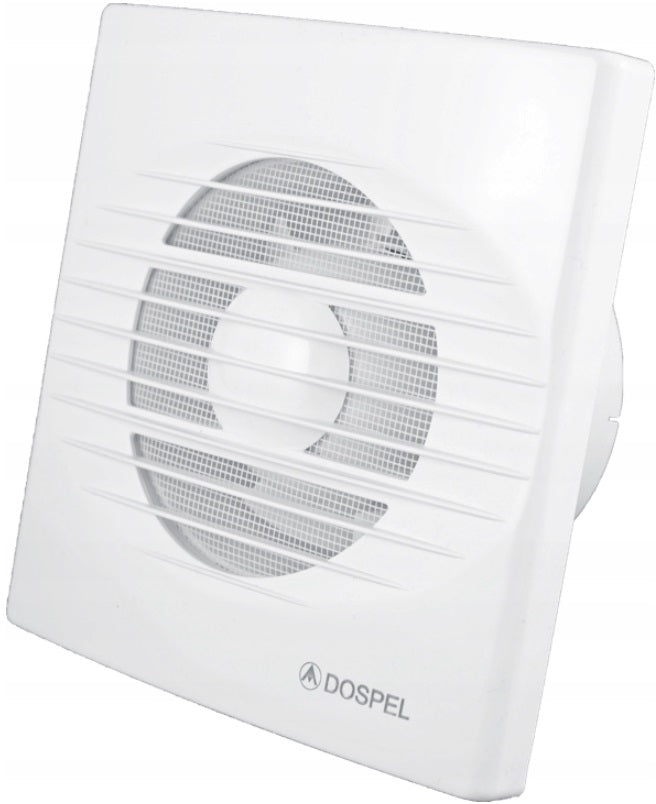

The RICO axial fan, manufactured by Dospel, boasts a sleek and compact design with a diameter of 100 mm. This fan, featuring a timer switch and hygrostat, is crafted from durable ABS plastic. It has a UV coating that prevents the fan from yellowing, ensuring it retains its pristine white colour over time. With its stylish and modern finish, this fan seamlessly blends into any interior decor.

Equipped with an IPX2 protection rating, the RICO axial fan is resistant to water ingress from vertically falling droplets when tilted at a 15-degree angle from the vertical position. Additionally, it features class II insulation, providing enhanced safety against both direct and indirect electrical contact. These safety features make it a reliable choice for residential or commercial settings.

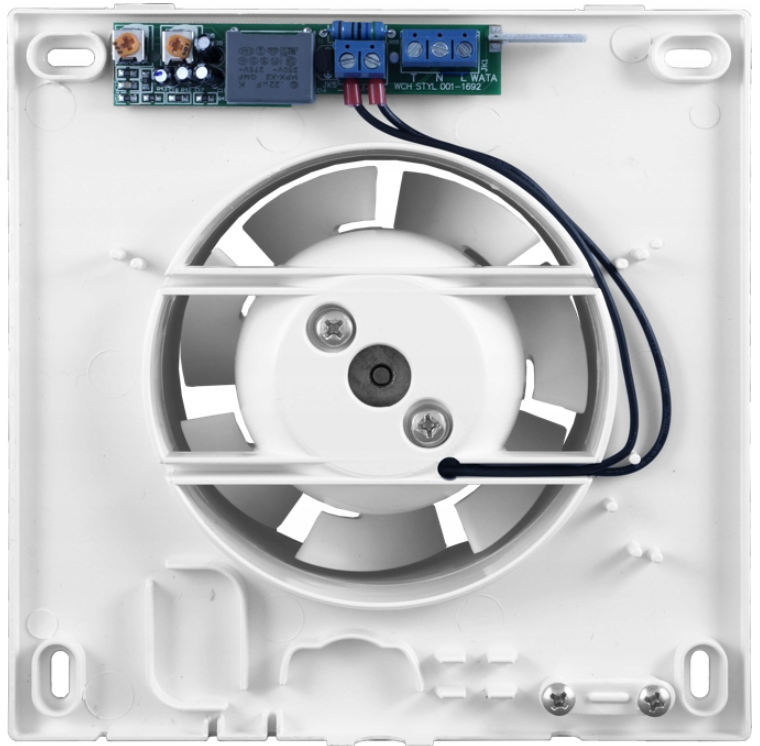

The fan's advanced functionality includes a timer switch and a hygrostat, enhancing its effectiveness. The timer switch allows the fan to continue operating for a preset duration after being turned off, ensuring continuous ventilation. The integrated humidity sensor, or hygrostat, automatically activates the fan based on the humidity levels set on the potentiometer, effectively managing moisture levels in the room and reducing the risk of mold and mildew.

Designed for wall mounting, the fan utilizes sleeve bearings and comes with power cables included in the set. The fan operates at an airflow rate of 100 m³/h with a static pressure of 34 Pa and an acoustic pressure of 40 dB(A). It runs on a supply voltage of 230/50 V/Hz, with a motor speed of 2650 rpm, drawing 0.12 A of current, and consuming 15 W of power. With a maximum operating temperature of 40°C, this fan is a compact yet powerful solution for effective ventilation.

For further technical details please view the ‘Specifications’ drop-down tab.
