The Complete Guide to Drainage Caps and Weep Hole Covers for Glazing Installations

Drainage caps and weep hole covers are critical components in any professional glazing installation. They protect your window and door frames from water ingress, extend the lifespan of seals, and ensure compliance with building regulations. This guide explains their function, types, placement strategies, and installation best practices for FENSA-registered tradespeople.

What Are Drainage Caps and Weep Hole Covers?

Drainage caps are protective covers fitted over weep holes in glazing frames—small openings designed to allow trapped water to escape safely. In sealed double and triple-glazed systems, condensation or rainwater can accumulate in the frame cavity. Without proper drainage, this moisture causes:

• Silicone and gasket degradation
• Frame rot (timber and composite frames)
• Corrosion (aluminium frames without proper anodising)
• Fogging and seal failure in glazed units

Weep holes allow this water to drain outward under gravity. Drainage caps—also called rain caps, weep covers, or drainage outlets—keep debris, insects, and leaves out while maintaining drainage function. They're non-negotiable for professional installations meeting BS 8000 Part 7: Code of Practice for Glazing standards.

How Water Management Works in Sealed Glazing Systems

Modern glazing frames rely on a multi-chamber design with deliberate drainage zones. The frame profile includes:

• Outer chamber: Exposed to weather; designed to shed water quickly
• Middle cavity: Thermal break (for aluminium) or insulation layer (uPVC)
• Inner chamber: Sealed condensation zone feeding glazed units

Any moisture that finds its way into the cavity must exit through weep holes positioned at the sill (base) of the frame. Sill weep holes are the primary drainage point; side and head positions provide secondary drainage. Drainage caps ensure this system remains effective over the life of the window.

Types of Drainage Caps

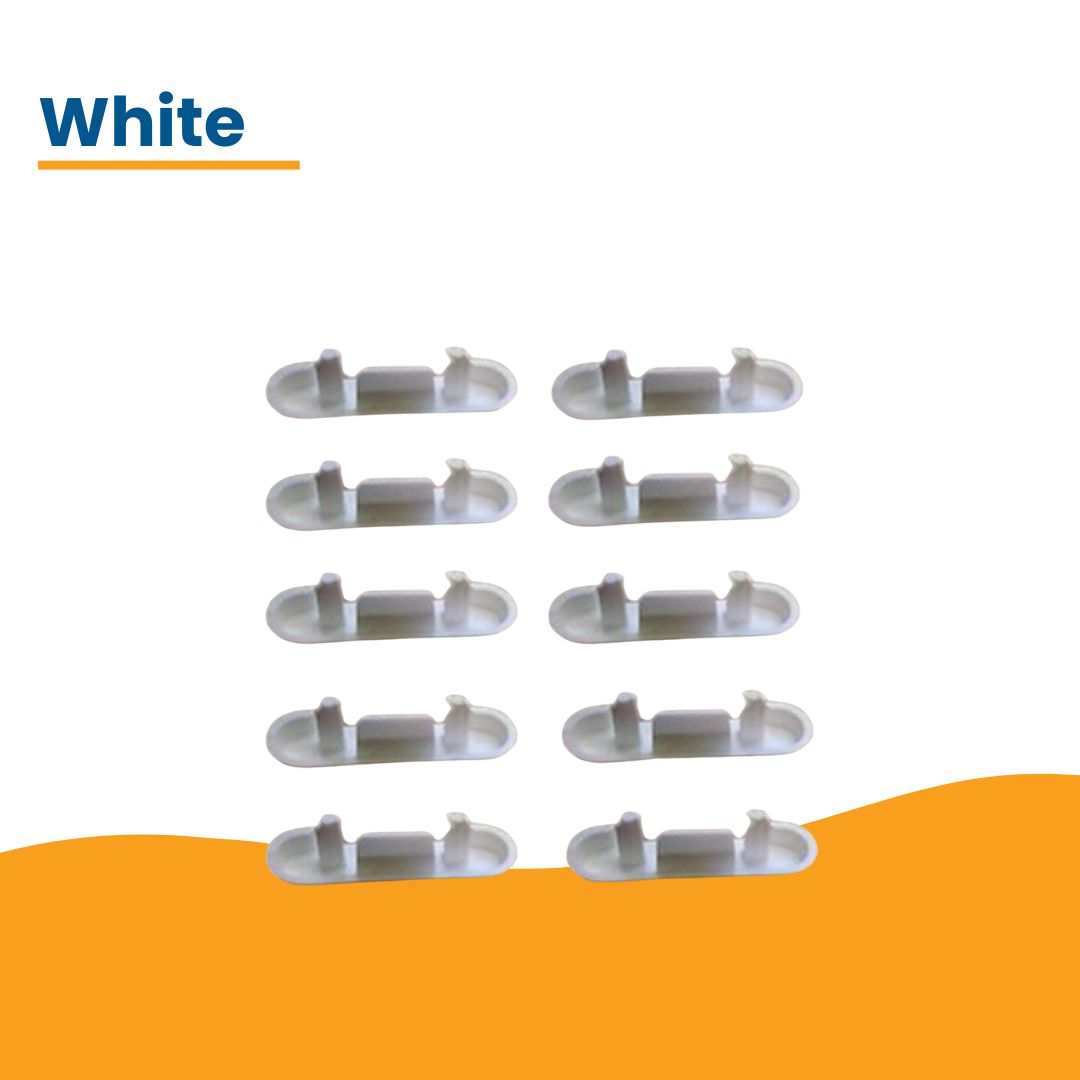

Standard Drainage Caps

The most common type: a simple plastic or metal cover with an angled top and downward-facing outlet. These are durable, affordable, and suitable for most uPVC and composite frame installations. They typically measure 50–80 mm in length and fit standard weep holes without modification.

Slotted and Louvred Caps

Designed for improved weather protection, these feature horizontal slats or louvers that allow vertical drainage while deflecting wind-driven rain. Preferred in exposed locations (coastal areas, wind-swept sites, or high-rise installations). Slightly more expensive but worthwhile for premium projects.

Aluminium Drainage Caps

Heavy-duty stainless steel or anodised aluminium caps for aluminium frame installations. These match the frame aesthetic, resist corrosion, and provide superior protection in harsh environments. Essential for commercial installations and coastal properties.

Frame-Specific Variants

Different frame manufacturers design weep holes to suit their profiles. Always verify cap compatibility with your frame specification before ordering. GSD's glazing accessories collection includes caps for leading uPVC, aluminium, and timber frame systems—check product descriptions for frame compatibility.

Where to Place Drainage Caps

Sill Drainage (Primary)

The sill is the horizontal base of the frame and the natural lowest point. Water drains here first. Install drainage caps at all weep holes along the sill—typically one cap every 200–400 mm depending on frame width and profile. Never block or bridge sill weep holes with sealant or debris.

Side and Head Drainage (Secondary)

Vertical frames (sides and top) may have secondary weep holes to manage water running down the frame edges. Install caps here too, even if the primary drainage is at the sill. This redundancy prevents water pooling in corners during heavy rain.

Glazing Channel Drainage

Some frame systems feature dedicated drainage channels within the glazing rebate (the recess holding the glass). Drainage caps for these channels are often integrated into the channel profile or fitted as separate outlet caps at the sill end of the channel. Follow the frame manufacturer's installation guide for correct placement.

Installation Tips for Professionals

Position Caps Correctly

Drainage caps must slope slightly downward to encourage water shedding. Fit them level or with a very slight outward tilt. A cap angled inward will trap water rather than drain it.

Ensure Weep Holes Are Clear

Before fitting caps, clear all weep holes of silicone, foam, or debris from manufacturing or installation. Use a small brush, compressed air, or a thin probe to verify patency. A blocked weep hole negates the benefit of any cap.

Avoid Common Mistakes

• Overfilling sealant: Never seal over or around weep holes with silicone. Sealant should only fill the rebate and rabbet, not bridge drainage openings.
• Using flexible packers at sills: Hard plastic packers belong under sills. Soft foam packers obstruct water flow and should be confined to side and head positions.
• Installing caps upside down: Check orientation—the outlet should face downward and outward, not inward toward the cavity.
• Forgetting secondary locations: Don't assume sill caps alone will manage all moisture. Install at head and side weep holes too.

Post-Installation Checks

After fitting drainage caps, pour a small amount of water into the sill cavity (from inside, using a cup). Observe that water flows freely to the weep holes and exits cleanly beneath each cap. This simple test confirms the drainage system is functioning before you complete the job.

Pairing Drainage Caps with Glazing Packers

Drainage caps work best when paired with correct packer placement. Glazing packers—the small plastic wedges that support the glass weight—should be positioned carefully to avoid obstructing water flow.

• Sill packers (hard plastic): Place these directly under the glass, spaced at 300–500 mm intervals. They support weight without blocking the sill cavity or weep holes beneath them.
• Side and head packers: Use soft foam or specialist packers here to reduce point-load stress. These don't impede drainage because water flows downward to the sill.

For detailed guidance, see our companion articles on what size glazing packers you need and how to fit glazing packers properly. Correct packer positioning combined with drainage caps ensures both structural integrity and water management.

Compliance Notes

BS 8000 Part 7

British Standard BS 8000 Part 7 (Code of Practice for Glazing) mandates adequate drainage provision in sealed frame systems. Section 7.3.3 specifically requires weep holes in external frames and protection against debris ingress. Drainage caps satisfy this requirement, demonstrating professional compliance during certification audits.

FENSA and Building Regulations

FENSA-registered installers must comply with Building Regulations Schedule 4 (as amended). Proper drainage is part of demonstrating workmanship quality and durability (Regulation 7). Drainage caps, fitted correctly, form part of the evidence that your installation meets these standards. Always retain photographic records of cap installation for regulatory sign-off.

Manufacturer Guidance

Frame manufacturers publish installation guides specifying weep hole locations and drainage cap models compatible with their profiles. Before specifying caps for a project, cross-reference the frame specification sheet. Non-compliant caps may void frame warranties or compromise structural warranty claims.

Conclusion

Drainage caps are a small but essential investment in glazing longevity. Professional installation requires attention to placement, orientation, packer positioning, and debris clearance—but the payoff is clear: frames protected from water ingress, seals that remain intact, and installations that meet BS 8000 and Building Regulations standards.

GSD supplies a comprehensive range of drainage caps for uPVC, aluminium, and timber composite frames, with fast UK delivery. Pair them with complementary glazing accessories for complete protection. Questions about compatibility or installation? Our technical support team is ready to help.
