Double Glazing Types & Benefits: A Professional Installer's Reference Guide

Introduction: Why Glazing Knowledge Matters for Professional Installers

As a professional window and door installer, you face glazing specification decisions daily. Your customers—architects, property managers, developers, and homeowners—expect you to recommend the right double glazing type for their project. Understanding double glazing types and their performance characteristics is essential to meeting those expectations and delivering installations that stand the test of time.

This guide covers the core glazing unit types you'll encounter on-site, their thermal and acoustic properties, and the practical implications for installation. Whether you're specifying units for a new-build estate or retrofitting heritage properties, you'll find reference-grade detail here.

How Double Glazing Works: The Insulated Glass Unit (IGU)

Modern double glazing is built around the Insulated Glass Unit (IGU)—two panes of glass separated by a spacer bar, with an airtight seal and a gas fill. The magic is in the gap:

• Two panes of glass: Each typically 4mm–6mm float glass, but can be laminated, tinted, or coated
• Spacer bar: Aluminium (traditional, highly conductive) or warm-edge stainless steel and foam (modern, lower thermal transmission)
• Gas fill: Argon (most common, better insulation than air) or krypton (rarer, better for very narrow cavities)
• Edge seal: Primary (PIB or butyl rubber) and secondary (structural silicone) seals keep moisture and gas inside

The sealed air or inert gas is what creates the insulating layer. Still air conducts heat slowly; the larger the gap (within reason), the better the insulation. Typical glazing units range from 6mm to 16mm cavity, with 12mm–16mm most common in new installations.

Standard Double Glazing: 4-16-4mm Specification

The most widespread double glazing type is the 4-16-4mm unit: 4mm outer pane, 16mm argon cavity, 4mm inner pane. This is your everyday workhorse specification.

• Typical U-value: 2.8–3.0 W/m²K (with aluminium spacer). Meets Building Regulations Part L for many applications, though no longer for new residential buildings
• Weight: Approximately 15–16 kg/m² per unit
• Applications: Secondary glazing, window refurbishment, commercial buildings not pursuing higher standards
• Installation: Standard packers and setting blocks; straightforward handling

Standard double glazing provides a solid baseline of thermal insulation and noise reduction compared to single glazing. However, as building codes tighten, you'll find it specified less frequently in new-build residential work. Use it for like-for-like replacement in older properties and where the designer or engineer has approved it explicitly.

Low-E (Low Emissivity) Double Glazing: Meeting Modern Standards

Low-emissivity glass has a microscopically thin metallic or metal oxide coating that reflects heat back into the room while remaining transparent to visible light. This is the double glazing type that dominates modern installations.

How Low-E Coatings Work

• Hard coat (pyrolytic): Applied during glass manufacturing to the hot surface. Durable, less sensitive to handling, good for laminated IGUs
• Soft coat (sputtered): Applied after manufacturing in a vacuum chamber. More reflective, higher performance, but must face the sealed cavity to avoid oxidation

Both types reduce the emissivity of the glass surface—its ability to radiate heat—turning the inner pane into a radiative barrier. Heat trying to escape through the window bounces back into the room.

Thermal Performance & Compliance

• Typical U-value: 1.4–1.8 W/m²K (with warm-edge spacer), compared to 2.8–3.0 for standard glazing
• Part L compliance: Almost essential for new residential buildings; no longer optional
• Passivhaus preparation: Low-E glazing is foundational; often paired with triple glazing and warm-edge spacers to approach Passivhaus targets

Specifiers appreciate low-E because it delivers measurable energy savings without requiring triple glazing in most climates. You'll find it specified in renovation projects pursuing EPC ratings and in all new-build residential work across the UK.

Acoustic Double Glazing: Reducing Noise Ingress

Proximity to road noise, airports, or railways demands acoustic performance. Acoustic double glazing uses laminated glass and asymmetrical cavities to break noise transmission pathways.

Key Features

• Laminated glass: Two or more panes bonded with PVB (polyvinyl butyral) interlayer. Noise energy is dissipated as the sound wave travels through the interlayer
• Asymmetrical design: Typically 6mm (outer, often laminated) + 12–15mm cavity + 4mm (inner). Different pane thicknesses and cavity widths prevent resonance at any single frequency
• Cavity fill: Argon or specialist sound-damping gases (e.g., Argon + viscous additives) can improve further

Acoustic Performance

• Typical dB reduction: 30–35 dB with standard acoustic specifications; up to 40+ dB with premium specifications
• Applications: Urban residential (heavy traffic), airport environs, railway corridors
• Weight consideration: Laminated glass is heavier (6mm laminated ~15 kg/m²). Packer sizing and sill loading must account for this

Acoustic units often come with low-E coating for dual thermal and acoustic benefit. The laminate adds weight and slightly reduces transparency (though barely noticeable to the eye). Installation is identical to standard units, but the increased mass demands robust packer placement and load-bearing consideration.

Solar Control Glazing: Managing Overheating

In south-facing offices, conservatories, and homes at risk of summer overheating, solar control glazing reduces solar heat gain while maintaining vision and light transmission.

How Solar Control Works

• G-value (Solar Heat Gain Coefficient): Expressed 0–1 (or 0–100%). A lower g-value means less solar heat passes through; typically 0.30–0.50 for solar control variants
• Tinted glass: Absorbs solar radiation; reduces heat and glare. Colours include grey, bronze, green
• Reflective coatings: Reflect solar radiation away; highly effective but can create visual distortion and external reflections
• Spectrally selective coatings: Modern coatings transmit visible light while blocking infrared (heat). Minimal tint, excellent control

G-value is as important as U-value in warm climates and well-insulated, south-facing buildings. A low-E + solar control hybrid is common—low-E to prevent heat loss in winter, solar control to prevent heat gain in summer.

Triple Glazing: The Premium Thermal Envelope

Triple glazing adds a third pane and a second cavity, creating exceptional thermal performance. It's not standard everywhere yet, but demand is rising.

Typical Specification: 4-12-4-12-4mm

• U-value: 0.8–1.2 W/m²K (with warm-edge spacers and soft-coat low-E). Roughly half the heat loss of single low-E IGUs
• Weight: ~22–24 kg/m² per unit. Significantly heavier than double glazing
• Frame design: Requires deeper reveals and stronger frame sections. Not a retrofit retrofit to existing frames without modification
• Applications: New-build Passivhaus, premium retrofit projects, ultra-high-performance buildings in cold climates

Trade-Offs

• Cost: 30–50% more than equivalent double glazing
• Packer requirements: Heavier load demands robust packers and careful load distribution. Size selection is critical
• Handling: Requires two-person or mechanical handling; single-handed installation is unsafe
• Light transmission: Marginal reduction in visible light (typically 1–3%) compared to double glazing; not usually noticeable

Triple glazing is specified in Passivhaus designs and premium passive house retrofits. In milder UK climates, the energy payback period can be longer than the return on investment in double glazing with low-E. Always check the design specification before assuming triple glazing is required.

Self-Cleaning Glass: Convenience Meets Performance

Some modern glazing units incorporate self-cleaning technology—a hydrophilic or photocatalytic coating on the outer surface that breaks down organic soiling and allows water to sheet away, reducing the need for manual cleaning.

How It Works

• Photocatalytic (TiO₂ coating): UV light catalyses breakdown of organic contaminants; water sheets to carry debris away
• Hydrophilic coating: Water spreads as a sheet rather than beading, reducing water spots and residue

When to Specify

• Difficult-to-access windows (high-rise, sloped roof lights)
• Residential properties where occupants want reduced maintenance
• Commercial buildings with polished glass façades

Self-cleaning glass costs more but can be a strong selling point for high-specification residential and premium commercial projects. The coating is durable (life of the glass) but requires some UV light and moisture to function effectively. Shaded, dry locations (e.g., covered balconies) will not benefit.

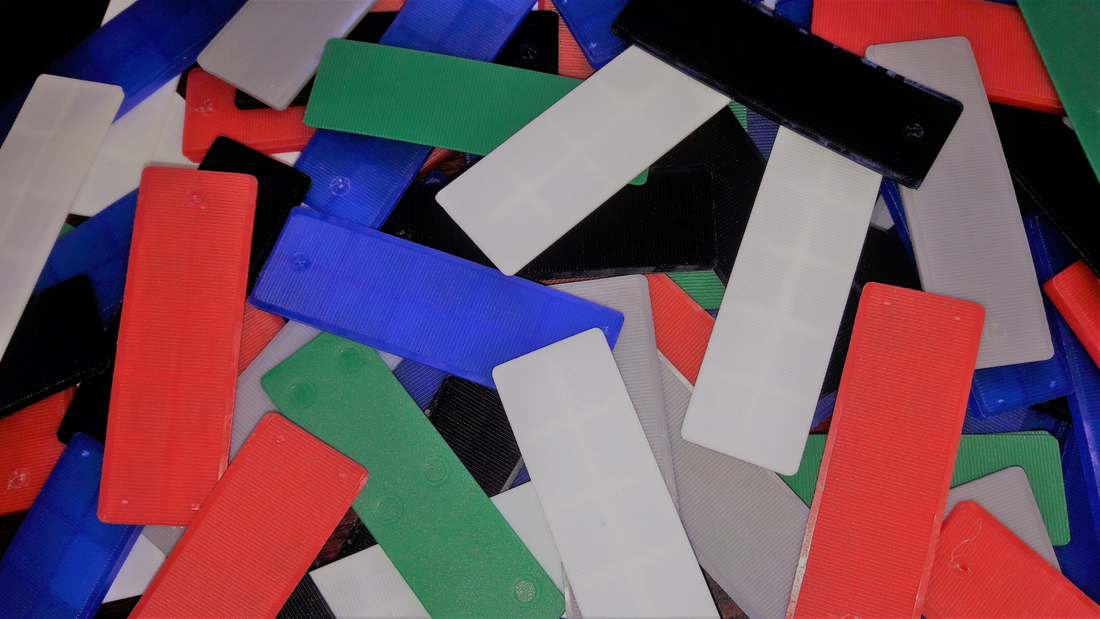

Glazing Unit Specification & Installation: Packers and Load Distribution

Understanding unit weight and size is critical for correct packer selection and installation. Heavier units (acoustic, triple glazing) demand different handling from lightweight standard units.

Packer Placement Principles

• Load calculation: Total unit weight ÷ number of packers = load per packer. Most manufacturers provide safe working load tables
• Setting blocks: Vertical packers at the sill support vertical load. Setting blocks differ from head/jamb packers in load rating and placement
• Head and jamb packers: Resist lateral wind load and lateral expansion; typically lighter-duty than setting blocks

Practical Installation Steps

See our detailed installation guide, but in brief:

• Place two setting blocks 100–150mm from each sill corner, under the unit's sill line
• Add head packers 150mm from each head corner to resist upward expansion and wind load
• Side (jamb) packers between head and sill, spaced 300–400mm apart, resist lateral wind and sill movement
• Verify unit sits square and level before sealing; use temporary props if needed

For heavy units (triple glazing, acoustic), consider using specialist packers rated for higher loads. Standard plastic packers may not be adequate.

Conclusion: Choosing the Right Glazing Type for Your Project

Double glazing types range from basic 4-16-4mm standard units to sophisticated triple-glazed, low-E acoustic systems. Your specification choice depends on:

• Building Regulations: Part L compliance (England), equivalent in Scotland/Wales. Low-E is now essential for new residential
• Location and climate: Cold climates favour triple or high-performance low-E; noisy environments require acoustic variants
• Retrofit vs. new-build: Frame depth and existing structure may limit options
• Occupant priorities: Energy savings, noise reduction, summer comfort, maintenance convenience
• Budget: Balance upfront cost against long-term energy return and customer satisfaction

At GSD, we supply the full range of glazing installation accessories—packers, setting blocks, wedges, and spacers—for every double glazing type you'll specify. Our technical team is here to support your packer selection and installation questions. Explore our glazing packer collection and download technical data from your preferred supplier to ensure every installation is correct, safe, and built to last.
